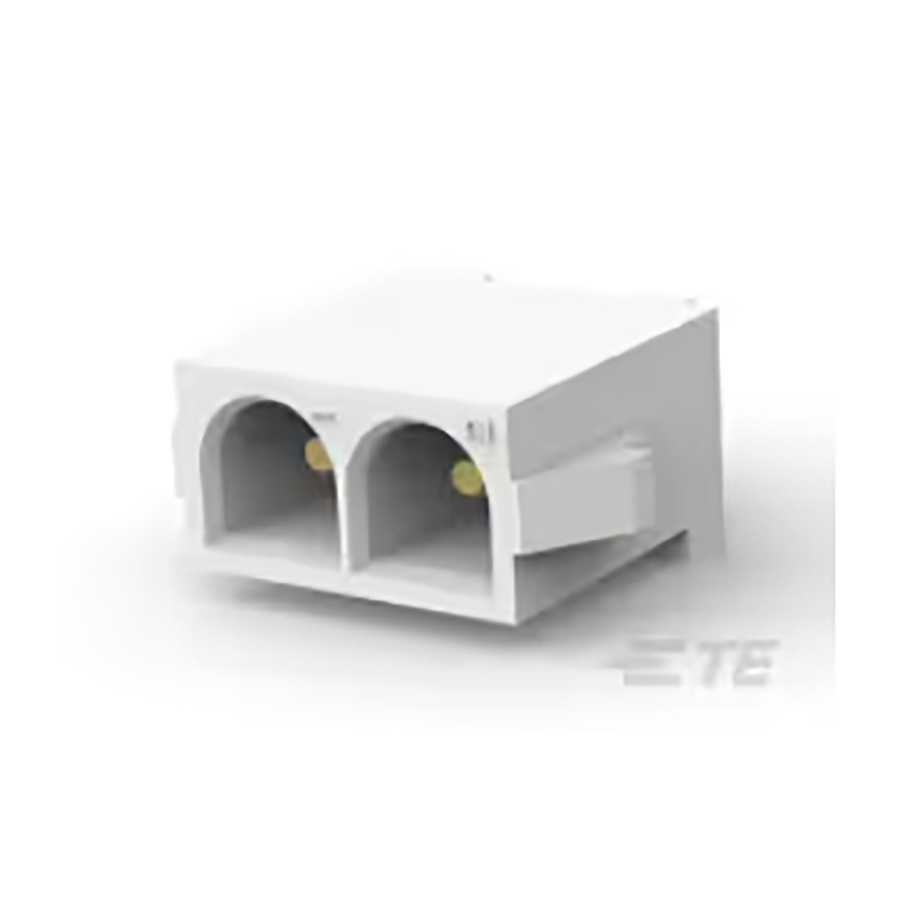

350428-4
Manufacturer:
TE Connectivity
Mfr.Part #:
350428-4
Datasheet:
Description:
IC and Component Sockets Through Hole Pin Number of Positions:2 Number of Rows:1 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Length | 13.97 mm |
| Width | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 13.97 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| RoHS | Compliant |
| Lead Pitch | 6.35 mm |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 6.35 mm |
| Number of Terminals | 2 |
| Current Rating | 19 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 12 A |
| Housing Color | Natural |
| Plating | Gold |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 2 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Contact Finish - Mating | Gold |
Stock: 20997
Distributors
pcbx
pcbxUnit Price$1.27634
Ext.Price$1.27634
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.27634 | $1.27634 |
| 10 | $1.08493 | $10.84930 |
| 25 | $1.02769 | $25.69225 |
| 50 | $0.97347 | $48.67350 |
| 100 | $0.92211 | $92.21100 |
| 300 | $0.87346 | $262.03800 |
| 500 | $0.82738 | $413.69000 |
| 1000 | $0.78371 | $783.71000 |
| 3000 | $0.77704 | $2331.12000 |
| 5000 | $0.77043 | $3852.15000 |
